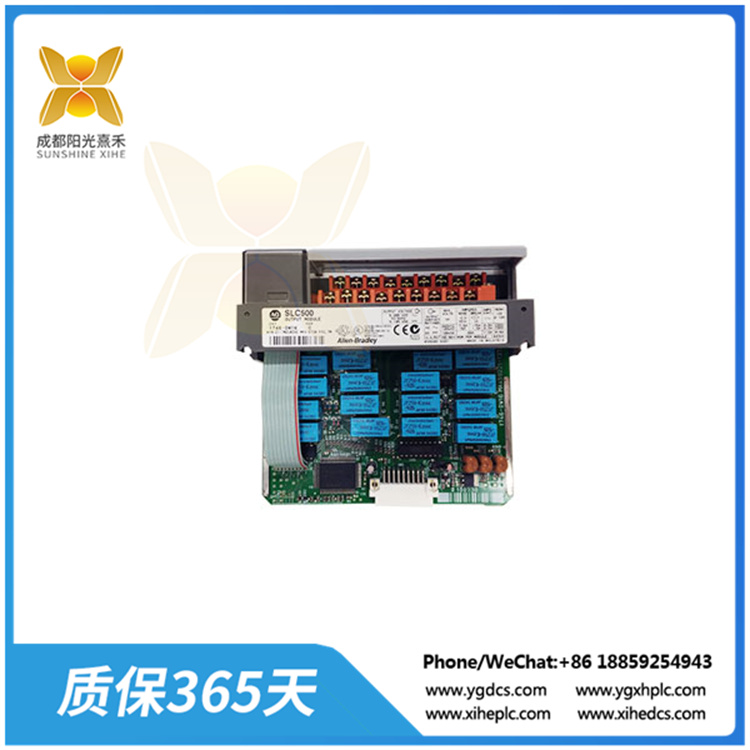

>>>型號:1746-OW16 16點繼電器輸出模塊 具備故障診斷功能
【功能描述】
1746-OW16是一款16點繼電器輸出模塊，它是SLC 500系列PLC（可編程邏輯控制器）的一部分。這款模塊的主要功能是將PLC內部的邏輯控制信號轉換為實際的繼電器輸出，以驅動現場的負載設備。
1746-OW16的輸出點數為16點，每8點共用一個公共端。它的工作電壓范圍非常廣泛，可以是交流5伏至265伏，47赫茲至63赫茲，也可以是直流5伏至125伏。這使得該模塊能夠適應多種不同的電氣環境，從而提高了其應用的靈活性。
在信號延遲方面，當模塊處于ON或OFF狀態時，其最大信號延遲均為10毫秒。這種快速的響應時間使得該模塊能夠迅速、準確地響應PLC的控制指令。
1746-OW16模塊還具有較高的電氣性能。在交流運行時，其持續電流為2.5安培；在直流125V下，持續電流為1.0安培；在24VDC下運行時，持續電流為2.0安培。同時，它的最大散熱為5.7瓦，能夠有效地保持模塊的穩定運行。
1746-OW16模塊還具備故障診斷功能。每個輸出點都配備有狀態指示燈，當邏輯指示燈亮起時，表示處理器已經在邏輯上接通了輸出設備；當輸出指示燈亮起時，表示已經有實際電流流人輸出設備。這種設計使得故障診斷變得更為方便和直觀。
總的來說，1746-OW16是一款功能強大、性能穩定的繼電器輸出模塊。它適用于各種工業自動化應用，能夠準確、快速地響應PLC的控制指令，并驅動現場的負載設備。同時，其廣泛的電壓范圍和較高的電氣性能也使得它在各種電氣環境下都能表現出色。
>>>>型號:1746-OW16 16點繼電器輸出模塊 具備故障診斷功能
【英文介紹】
The 1746-OW16 is a 16-point relay output module that is part of the SLC 500 series PLC (Programmable Logic Controller). The main function of this module is to convert the logic control signal inside the PLC into
the actual relay output to drive the load equipment in the field.
1746-OW16 has 16 output points and shares a common terminal every 8 points. It operates in a very wide range of voltages, from AC 5 volts to 265 volts, 47 Hertz to 63 Hertz, and DC 5 volts to 125 volts. This allows
the module to adapt to many different electrical environments, thus increasing the flexibility of its application.
In terms of signal delay, when the module is ON or OFF, its maximum signal delay is 10 milliseconds. This fast response time enables the module to respond quickly and accurately to the PLC's control instructions.
The 1746-OW16 module also has high electrical performance. In AC operation, its continuous current is 2.5 amps; At 125V DC, the continuous current is 1.0 amp; When operating at 24VDC, the continuous current is
2.0 amps. At the same time, it has a maximum heat dissipation of 5.7 watts, which can effectively maintain the stable operation of the module.
The 1746-OW16 module also has a fault diagnosis function. Each output point is equipped with a status indicator. When the logic indicator is on, it indicates that the processor has logically connected the output
device. When the output indicator lights up, it means that there is actual current flowing to the output device. This design makes fault diagnosis more convenient and intuitive.
Overall, the 1746-OW16 is a powerful and stable relay output module. It is suitable for a variety of industrial automation applications, can accurately and quickly respond to PLC control instructions, and drive the
load equipment in the field. At the same time, its wide voltage range and high electrical performance also make it excellent in a variety of electrical environments.
