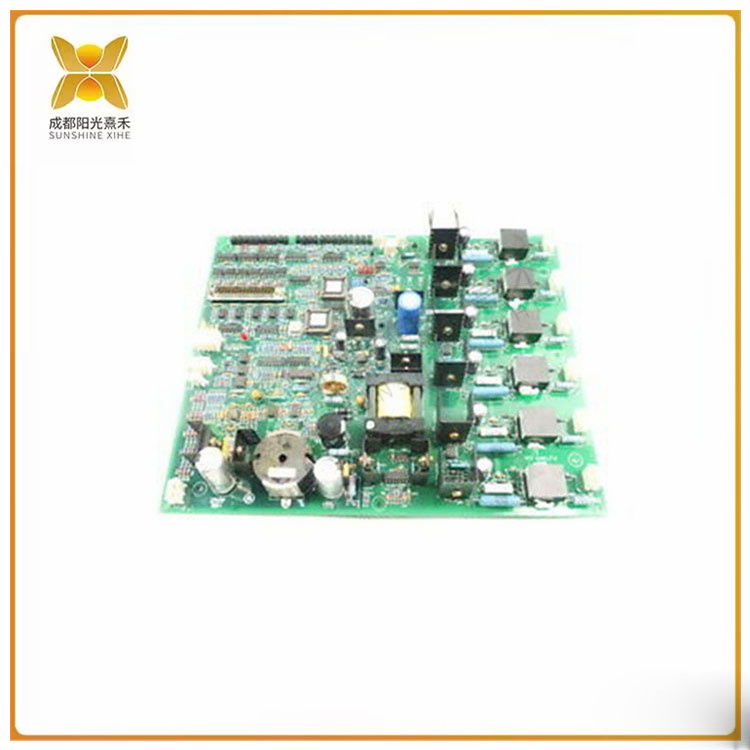

>>>>>型號:IS200EGPAG1BCA 連接顯示器輸出 驅動板
【功能描述】
S200EGPAG1BCA GE IS200EGPAG1BCA
IS200EGPAG1BCA簡單的說驅動板就相當于連接主機和顯示器的一個元件，主機通過驅動板輸入信息然后通過驅動板連接顯示器輸出。
IS200EGPAG1BCA驅動板上比較重要的集成電路是主控芯片（Sealer芯片）和微控制器（MCU）。IS200EGPAG1BCA驅動板的輸入接口通過連接線與計算機主板顯卡主控芯片相連，輸出接口通過一條或者兩條信號傳輸排線與液晶面板相連。
IS200EGPAG1BCA是一款專門為勵磁機門設計的脈沖放大器板。它放大脈沖信號，以確保勵磁機系統中的門正常工作。
GE EX2100 IS200EGPAG1BCA勵磁機門脈沖放大器板用于將控制連接到控制系統中的功率橋。它負責連接電流傳導反饋、溫度監測和橋接氣流。
門脈沖放大器板號IS200EGPAG1BCA位于電源轉換柜中，可連接到電源轉換模塊。該模塊是在橋架和保護板/模塊下方標記的板之一，雖然該板可以獨立運行，但通常需要從其中一個EPDM模塊獲取電源。
IS200EGPAG1BCA板接收來自安裝在SCR散熱器上的兩個熱開關的反饋。這些開關在報警級別和跳閘級別觸發和斷開，并直接連接到IS200EGPAG1BCA。開關在觸發前必須達到的溫度為190°F的跳閘水平和170°F的報警水平。如果只有一個開關打開，則發生了關于電橋的過熱警報，如果兩個開關都打開，則表明發生了跳閘和故障，則開關可以單獨打開或一起打開。
>>>>>型號:IS200EGPAG1BCA 連接顯示器輸出 驅動板
【英文介紹】
S200EGPAG1BCA GE IS200EGPAG1BCA
IS200EGPAG1BCA Simply said that the driver board is equivalent to a component connecting the host and the display, the host input information through the driver board and then through the driver board connected to the display output.
The more important integrated circuits on the IS200EGPAG1BCA driver board are the main control chip (Sealer chip) and the microcontroller (MCU). The input interface of the IS200EGPAG1BCA driver board is connected to the main control chip of the computer motherboard graphics card through a connection line, and the output interface is connected to the LCD panel through one or two signal transmission lines.
The IS200EGPAG1BCA is a pulse amplifier board specially designed for exciter gates. It amplifies the pulse signal to ensure that the gate in the exciter system works properly.
The GE EX2100 IS200EGPAG1BCA exciter gate pulse amplifier board is used to connect the control to the power bridge in the control system. It is responsible for connecting current conduction feedback, temperature monitoring and bridging airflow.
The gate pulse amplifier board number IS200EGPAG1BCA is located in the power conversion cabinet and can be connected to the power conversion module. This module is one of the boards marked below the bridge and the protection board/module, and although the board can operate independently, it usually requires power from one of the EPDM modules.
The IS200EGPAG1BCA board receives feedback from two thermal switches mounted on the SCR radiator. These switches trigger and disconnect at alarm and trip levels and are directly connected to the IS200EGPAG1BCA. The temperature the switch must reach before triggering is a trip level of 190°F and an alarm level of 170°F. If only one switch is open, an overheating alarm about the bridge has occurred, if both switches are open, it indicates that a trip and a fault has occurred, and the switches can be opened separately or together.
