>>>>>型號:IS220PTURH1B 渦輪機I/O模塊 允許自動重新配置

【功能描述】

IS220PTURH1B是GE為其Mark VI系統創建的組件。Mark VI是GE發布的用于燃?xì)?蒸汽輪機管理的最終Speedtronic系統之一。

IS220PTURH1B是主渦輪機專用主脫扣包。該組件在渦輪機控制終端板與一個或兩個以太網網絡之間提供電氣接口。該電池組的輸出通過連接到相關端子板的DC-62引腳連接器進行。

IS220PTURH1B采用黑色外殼，帶有空氣流通開口。該外殼的正面有多個LED指示燈，以及一個IR（紅外端口）。此包中不使用此端口。在這個外殼內，有一個處理器板、一個專門用于渦輪機控制的第二塊板和一個模擬采集輔助板。該電池組安裝到TTURH1C端子板上。處理器板有兩個10/100以太網端口、閃存和RAM、一個用于識別的只讀芯片、一個內部溫度傳感器和一個復位電路。

該IS220PTURH1B允許自動重新配置，自動從控制器下載到I/O包。重新配置包括基本負載、引導負載、固件和參數。必須啟用自動重新配置才能執行此操作。這可以通過組件編輯器在Toolbox ST應用程序中啟用或禁用。

該IS220PTURH1B具有一個帶有四個無源磁性速度輸入的接口。電路靈敏度可以檢測2 RPM的轉動齒輪速度，以確定渦輪機是否已降至零轉速（渦輪機已停止）。電池組上的中值速度信號用于速度控制和主要超速跳閘信號。如果您需要更多信息，請查閱制造商的手冊或數據表。

 >>>>>型號:IS220PTURH1B 渦輪機I/O模塊 允許自動重新配置

【英文介紹】

The IS220PTURH1B is a component created by GE for its Mark VI system. The Mark VI is one of the final Speedtronic systems released by GE for gas/steam turbine management.

The IS220PTURH1B is a special main trip package for the main turbine. This component provides an electrical interface between the turbine control terminal board and one or two Ethernet networks. The output of this battery pack is performed via a DC-62 pin connector connected to the relevant terminal board.

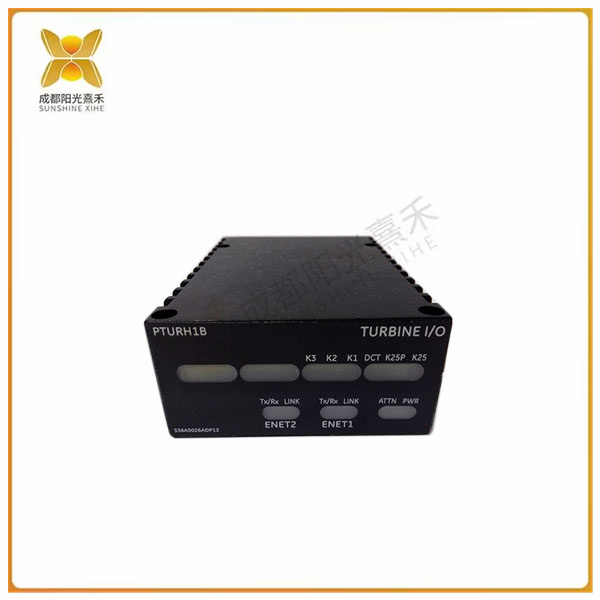

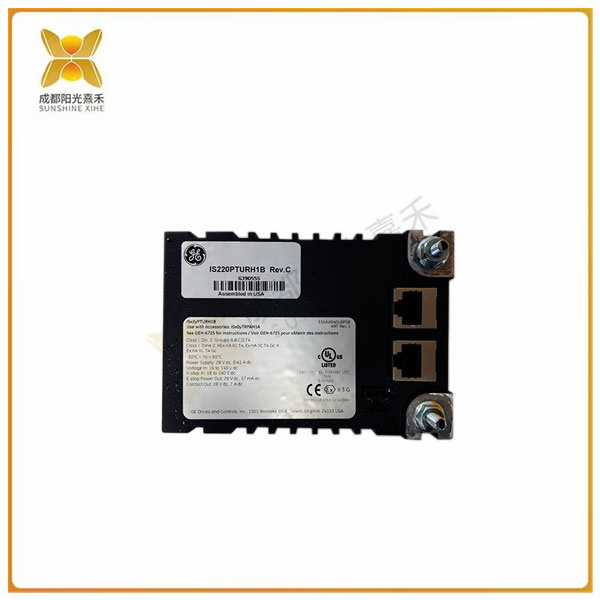

The IS220PTURH1B comes in a black housing with an air outlet. The front of the housing has multiple LED indicators, as well as an IR (infrared port). This port is not used in this package. Inside this enclosure, there is a processor board, a second board dedicated to turbine control, and an analog acquisition auxiliary board. The battery string is installed on the TTURH1C terminal board. The processor board has two 10/100 Ethernet ports, flash memory and RAM, a read-only chip for identification, an internal temperature sensor, and a reset circuit.

The IS220PTURH1B allows automatic reconfiguration and automatic download from the controller to the I/O package. Reconfiguration includes base load, boot load, firmware, and parameters. You must enable automatic reconfiguration to perform this operation. This can be enabled or disabled in the Toolbox ST application through the component editor.

The IS220PTURH1B has an interface with four passive magnetic speed inputs. The circuit sensitivity can detect a rotating gear speed of 2 RPM to determine if the turbine has dropped to zero speed (the turbine has stopped). The median speed signal on the battery pack is used for speed control and primary overspeed trip signals. If you need more information, consult the manufacturer's manual or data sheet.
