>>>>>型號:DS200TCPDG1BEC 配電板 具有 8 個撥動開關
【功能描述】

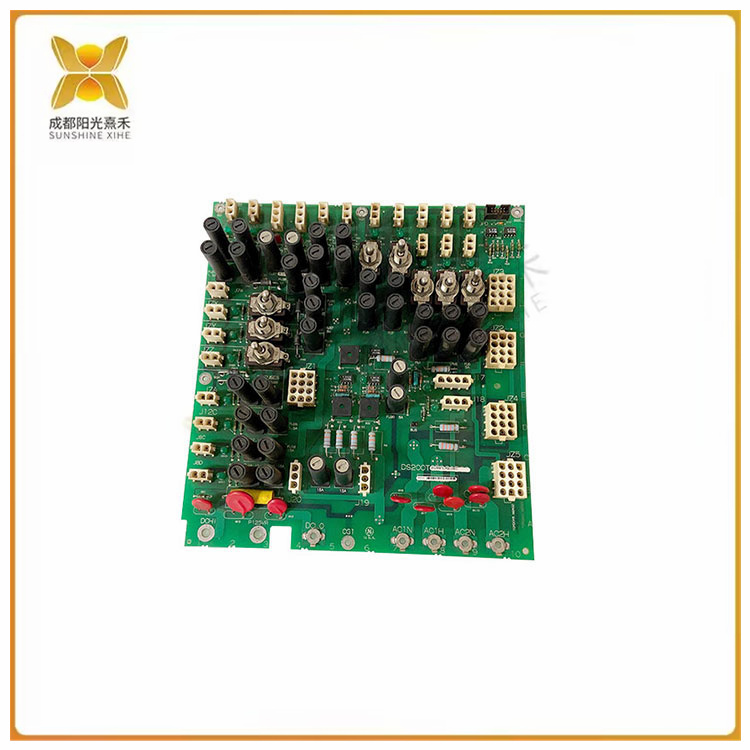

GE 配電板DS200TCPDG1BEC具有 8 個撥動開關、36 個保險絲和 4 個信號線端子。它還具有 36 個 OK LED 和 1 個 10 針連接器。GE配電板DS200TCPDG1BEC裝有黑色塑料外殼，可容納36個保險絲。保險絲位于罐中的垂直位置，在需要時易于檢修和更換。要更換電路板上的保險絲，請扭轉罐的頂部以將其打開。頂部仍然連接到罐上，以便于使用。用拇指和一根手指從罐中取出保險絲。最佳做法是丟棄熔斷的保險絲，以免意外再次插入電路板上的罐中。要安裝新保險絲，請將保險絲與開口對齊并將其放入罐中。保險絲的任一端都可以掉入罐中。將頂部放在罐子上并扭轉它以將其關閉。
要確定保險絲是否熔斷并需要更換，請考慮無法對保險絲進行目視檢查，因?yàn)楸ｋU(xiǎn)絲位于罐內。但是，每個保險絲旁邊都有一個 LED，指示保險絲正常。亮起時，綠色 LED 表示保險絲中的元件完好無損，并正在保護電路板電路。關閉時，保險絲熔斷或電路板未通電。如果所有 LED 都熄滅，您可能會懷疑主板未通電。
>>>>>型號:DS200TCPDG1BEC 配電板 具有 8 個撥動開關
【英文介紹】
The GE switchboard DS200TCPDG1BEC has 8 toggle switches, 36 fuses, and 4 signal line terminals. It also features 36 OK leds and a 10-pin connector. The GE switchboard DS200TCPDG1BEC is equipped with a black plastic housing and can accommodate 36 fuses. The fuse is located vertically in the tank for easy access and replacement when needed. To replace the fuse on the circuit board, twist the top of the can to open it. The top is still attached to the can for ease of use. Use your thumb and one finger to remove the fuse from the can. The best practice is to discard blown fuses so as not to accidentally re-insert them into the can on the circuit board. To install a new fuse, align the fuse with the opening and place it in the can. Either end of the fuse can be dropped into the can. Place the top on the jar and twist it to close it.
To determine if a fuse is blown and needs to be replaced, consider that a visual inspection of the fuse is not possible because it is located in the tank. However, there is an LED next to each fuse indicating that the fuse is normal. When lit, the green LED indicates that the components in the fuse are intact and are protecting the board circuit. When closed, the fuse is blown or the circuit board is not powered. If all leds are off, you may suspect that the motherboard is not powered on.
