>>>>>型號:TG-13（8516-038）調速器控制單元

【功能描述】

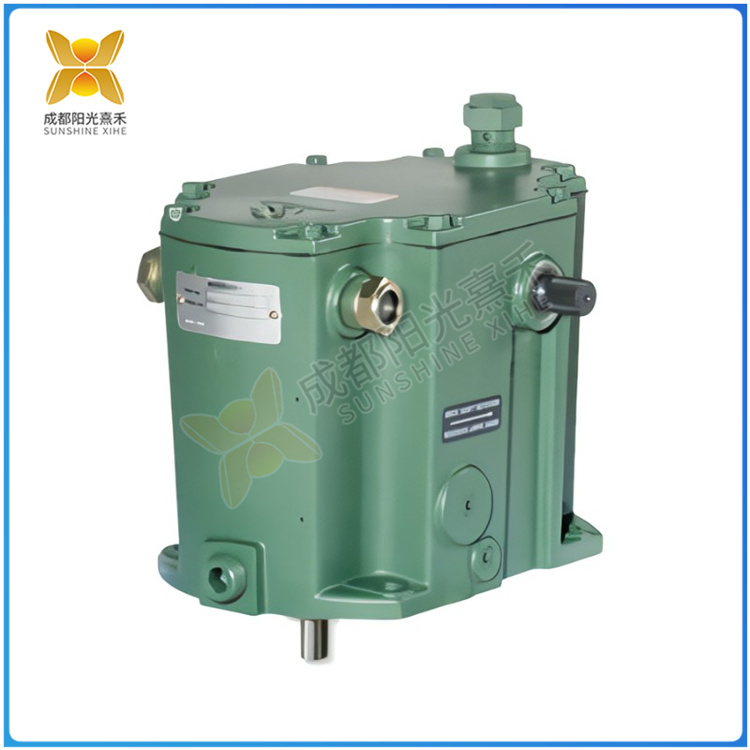

TG-13（8516-038）調速器控制單元

TG-13（8516-038） 汽輪機機械-液壓調速器,螺桿轉速設定范圍為1200-2400 rpm,額定轉速下降為2010 rpm)驅動軸順時針旋轉,適用于ATEX位置。調速器的16N.m(12 ft-lb)逆時針旋轉輸出端子

TG-13壓鑄鋁機械液壓降速調節器控制TG-13（8516-038） 汽輪機驅動泵、壓縮機或發電機,在這些地方不需要同步(恒速)運行。調速器通過輸入驅動軸感應汽輪

機轉子速度來控制汽輪機速度,將該速度與內部速度設定值進行比較,然后使用連接至汽輪機調速閥的旋轉輸出終端軸來控制汽輪機入口蒸汽流量。

這種獨立的調速器利用一個集成的驅動軸驅動的球頭組件來檢測渦輪機速度,并利用一個集成的驅動軸驅動的油泵來產生必要的輸出力,以移動/控制

渦輪機的調速閥。替換為:帶超速試驗裝置的TG-13（8516-038） ,或不帶OSTD的9904-827應用:在不需要同步(恒速)運行的地方,TG-13（8516-038） 驅動汽輪機:泵壓縮機/渦輪膨脹

機壓力和入口抽風機發電機特點:低成本速度下降控制順時針驅動軸防風雨結構獨立集水坑NEMA A速度控制16牛米(12英尺-磅)輸出專為惡劣環境設計已通過HAZLOC和ATEX地區的認證.

>>>>>型號:TG-13（8516-038）調速器控制單元

【英文介紹】

TG-13 (8516-038) governor control unit

TG-13 (8516-038) Turbine mechanical-hydraulic governor, screw speed setting range 1200-2400 rpm, rated speed down to 2010 rpm) Drive shaft rotates clockwise,

suitable for ATEX position. The 16N.m(12 ft-lb) output terminal of the governor rotates counterclockwise

The TG-13 Mechanical Hydraulic decelerator controls the TG-13 (8516-038) steam turbine to drive pumps, compressors or generators, where synchronous (constant speed)

operation is not required. The governor senses the steam turbine through the input drive shaft

The rotor speed is used to control the turbine speed. This speed is compared to the internal speed set value, and the steam flow at the turbine inlet is controlled using

the rotary output terminal shaft connected to the turbine speed-regulating valve.

This independent governor utilizes an integrated drive shaft-driven ball head assembly to detect turbine speed and an integrated drive shaft-driven oil pump to generate

the necessary output force for movement/control

Speed regulating valve of turbine. Replace with: TG-13 (8516-038) with overspeed test device, or 9904-827 without OSTD Application: Where synchronous (constant speed)

operation is not required,TG-13 (8516-038) Drive Turbine: Pump compressor/Turbo expander pressure and inlet exhauster generator Features: Low cost speed drop control

 Clockwise drive shaft weatherproof construction Separate sump NEMA A Speed control 16 nm (12 ft - lb) output designed for harsh environments Certified for HAZLOC and ATEX regions.
