MVME2431 VME 處理器模塊  |    CPU模塊

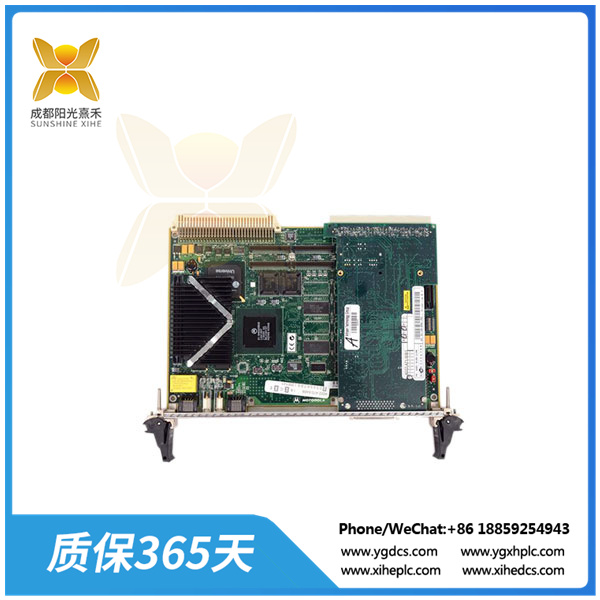

　　艾默生/摩托羅拉 MVME2431 VME 處理器模塊

　　型號：MVME2431

　　配置：

　　? PowerPC750 366 MHz 處理器

　　? 32 MB SDRAM

　　? Scanbe 手柄

　　部件號： 01-W3394F 01C

　　處理器模塊，也稱為CPU模塊，是嵌入式系統中的一個硬件模塊，通常包含一個中央處理器(CPU)、一些外設和接口等組件。它是計算機硬件中的重要組成部分，負責計算、控制和處理各種數據和信息。MVME2431 CPU模塊可以插入到計算機主板上，作為可更換的中央處理器。

　　MVME2431 處理器模塊通常由微處理器、緩存、總線控制器、數據通路和控制單元等組成。其中，微處理器負責執行各種計算和操作，緩存存儲了CPU模塊需要的數據和指令，總線控制器用來控制各種總線，數據通路則負責把數據從內存中傳送到CPU模塊。

　　此外，MVME2431 處理器模塊中的控制單元是整個CPU的指揮控制中心，由指令寄存器、指令譯碼器和操作控制器等組成，對協調整個電腦有序工作極為重要。它根據用戶預先編好的程序，依次從存儲器中取出各條指令，放在指令寄存器中，通過指令譯碼確定應該進行什么操作，然后通過操作控制器，按確定的時序，向相應的部件發出微操作控制信號。

　　Emerson/MOTOROLA MVME2431 VME processor module

　　Model: MVME2431

　　Settings:

　　? PowerPC750 366 MHz processor

　　? 32 MB SDRAM

　　? Scanbe handle

　　Part number: 01-W3394F 01C

　　A processor module, also known as a CPU module, is a hardware module in an embedded system that usually contains a central processing unit (CPU), some peripherals, and interfaces. It is an important part of computer hardware, responsible for calculating, controlling and processing all kinds of data and information. The MVME2431 CPU module can be plugged into the computer motherboard as a replaceable central processing unit.

　　The MVME2431 processor module is usually composed of microprocessor, cache, bus controller, data path and control unit. Among them, the microprocessor is responsible for performing various calculations and operations, the cache stores the data and instructions needed by the CPU module, the bus controller is used to control various buses, and the data path is responsible for transmitting data from the memory to the CPU module.

　　In addition, the control unit in the MVME2431 processor module is the command and control center of the entire CPU, which is composed of instruction registers, instruction decoders and operation controllers, etc., which is extremely important to coordinate the orderly work of the entire computer. According to the user's pre-programmed program, it takes out each instruction from the memory in turn, puts it in the instruction register, determines what operation should be carried out through the instruction decoding, and then sends a microoperation control signal to the corresponding component by operating the controller according to the determined timing.
