>>>>>型號:IS210BPPBH2BMD 中央控制模塊 允許訪問渦輪機數據

【功能描述】

該IS210BPPBH2BMD是由通用電氣制造的Mark VI板組件。 MKVI 專為蒸汽或燃?xì)廨啓C(jī)管理而設計，是 GE 發布的第五款 Speedtronic 系統。從1960年代到世紀之交，Speedtronic系列是通用電氣的主要管理產品線。該系統包括一個中央控制模塊，該模塊連接到終端板以及一個操作員界面，該界面允許訪問渦輪機數據、可編程維護工具和報警狀態。

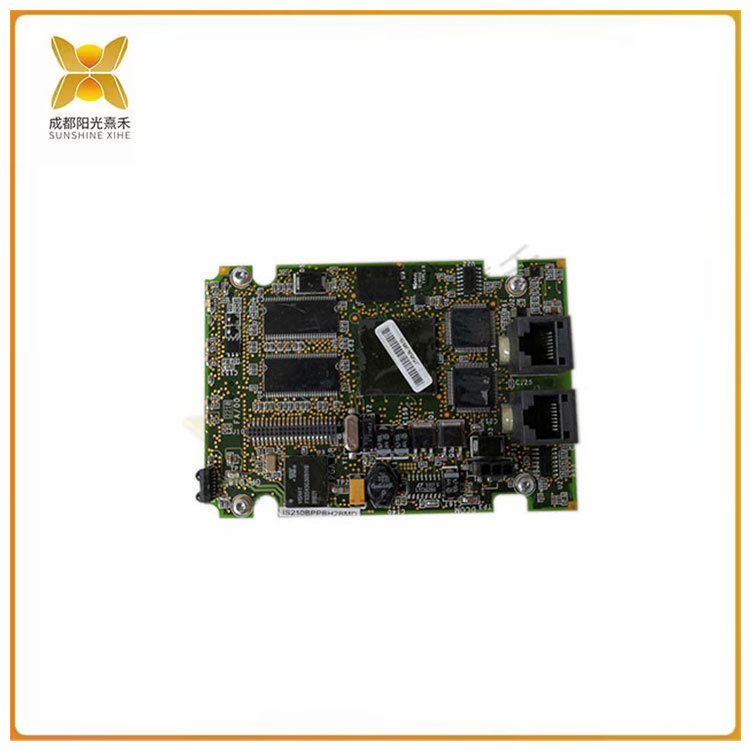

IS210BPPBH2BMD是一個小型輔助板，可連接到較大的 WETA 板。IS210BPPBH2BMD使用螺釘連接到其主板，螺釘穿過四個鉆孔。它們位于板的每個角附近。螺釘插入支架，然后插入下面的主板。該板的三個邊緣都有小切口。

IS210BPPBH2BMD由兩個母插頭填充。其中之一是三位插頭。另一個插頭是一個又長又窄的插頭。該板還具有兩個母插孔連接器。該板由變壓器、晶體管、電感線圈和兩個晶體/振蕩器組成。它還具有兩個 LED 組件，它們沿著電路板的一個邊緣并排放置。

IS210BPPBH2BMD上標有GE標志。它還帶有 Type 6、FA/00 和 E99006 等代碼。有關電路板組件、安裝程序和安全建議的更多信息，請參閱制造商的出版物。

 >>>>>型號:IS210BPPBH2BMD 中央控制模塊 允許訪問渦輪機數據

【英文介紹】

The IS210BPPBH2BMD is a Mark VI board assembly manufactured by General Electric. Designed for steam or gas turbine management, the MKVI is the fifth Speedtronic system released by GE. From the 1960s until the turn of the century, the Speedtronic series was GE's main management product line. The system includes a central control module that is connected to the terminal board as well as an operator interface that allows access to turbine data, programmable maintenance tools and alarm status.

The IS210BPPBH2BMD is a small auxiliary board that can be connected to a larger WETA board. The IS210BPPBH2BMD is attached to its motherboard using screws threaded through four drill holes. They are located near each corner of the board. Screw into the bracket and then into the motherboard below. There are small incisions on all three edges of the plate.

The IS210BPPBH2BMD is filled with two female plugs. One of them is three plugs. The other plug is a long, narrow plug. The board also has two female jack connectors. The board consists of a transformer, a transistor, an inductor coil, and two crystals/oscillators. It also features two LED components that are placed side by side along one edge of the board.

The IS210BPPBH2BMD is marked with the GE logo. It also comes with codes such as Type 6, FA/00, and E99006. For more information on board components, installation procedures, and safety recommendations, please refer to the manufacturer's publications.
