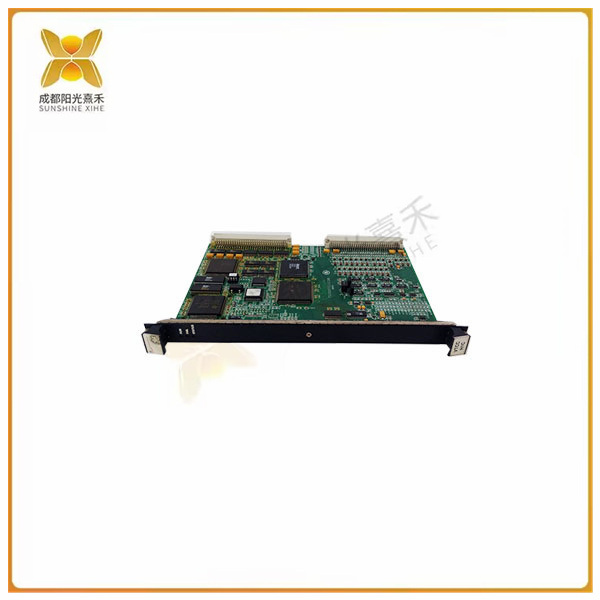

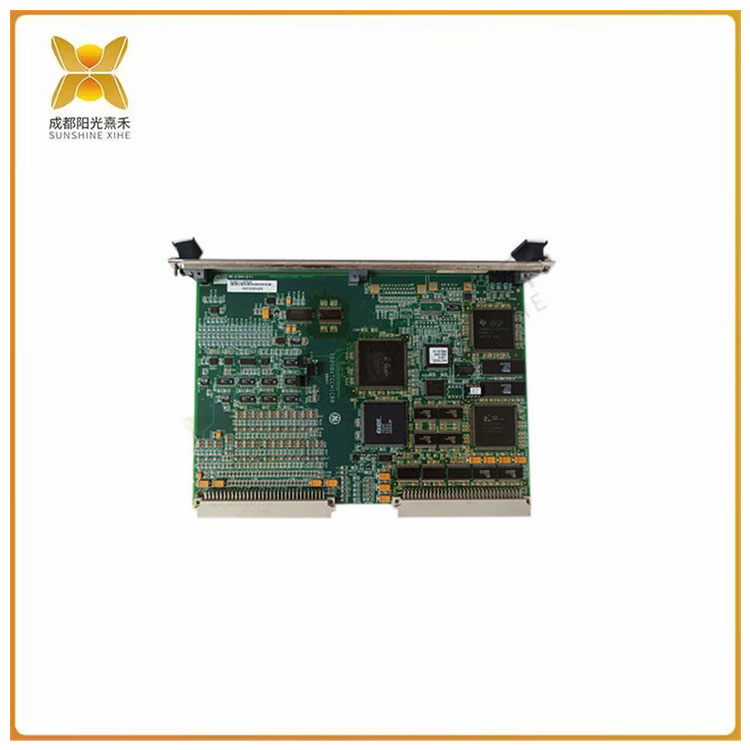

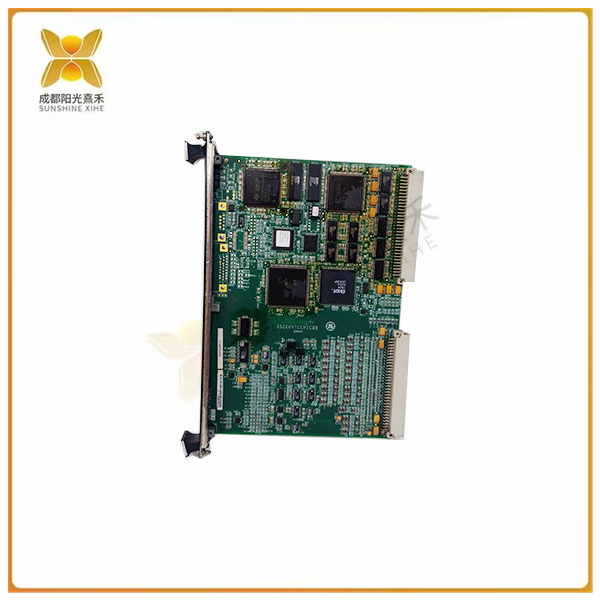

>>>>>型號:IS200VTCCH1CBB 熱電偶輸入 DIN歐式端子板
【功能描述】
型號IS200VTCCH1CBB是通用電氣生產的Mark VI板之一。該型號被指定為熱電偶輸入，最多可以接受24個熱電偶輸入。此型號的輸入可以連接到DTTC或TBTC端子板。TBTC端子板是相關的端子板，而DTTC板是DIN歐式端子板。根據與VTCC模型一起使用的TBTC模型，它可以在兩個不同的組中使用。TBTCH1C模型允許單工控制，而TBTCH1B模型允許三重模塊化冗余（TMR）控制。還有兩組VTCC型號;IS200VTCCH1CBB模型是第一組的一部分，這表明該模型可用于燃?xì)廨啓C(jī)控制應用。無論VTCC型號在哪一組使用，都將使用相同的端子板。
當IS200VTCCH1CBB型號接受熱電偶輸入時，VTCCH1型號支持的輸入類型為E、J、K、S和T熱電偶以及mV輸入。VTCC型號允許的mV跨度為-8 mV至+45 mV。該型號使用的熱電偶輸入可以接地或不接地，并且可以位于距離相關渦輪機控制柜最遠984英尺的地方。端子板上安裝了兩個冷端和高頻噪聲抑制器件。
當IS200VTCCH1CBB模型在TMR系統中運行時，如果設備上的某個信號與中值/投票值的偏差超過預定限值，則該信號將被識別并導致故障。有關VTCC型號的故障指示和可用診斷檢查的更多信息，請參閱GE手冊GEH-6421。
>>>>>型號:IS200VTCCH1CBB 熱電偶輸入 DIN歐式端子板
【英文介紹】
The IS200VRTDH1D is a GE Mark VI board component. The Mark VI is part of the Speedtronic gas turbine and steam turbine management series developed and released by GE from the late 1960s through the early 2000s. This turbine management line started with Mark I and has gradually become more technologically advanced. The Mark VI includes a triple redundant central control module connected to a PC-based operating interface. This operator interface allows turbine data to be accessed from a single location using software designed for turbine control.
The IS200VRTDH1D is an RTD (Resistance Temperature Device) input. The board accepts 16 three-wire RTD inputs, but these inputs are not directly connected to the board. Instead, the input is connected to the RTD terminal board and via cable to the VME rack where the IS200VRTDH1D is installed.
The IS200VRTDH1D has a single slot panel. Three LED indicators are installed on the panel to indicate run/fail/status. The colors of leds are green, red and orange. The panel is attached to the main PCB using three screws.
The IS200VRTDH1D is component-intensive. Circuit board capacitors (more than 200) and resistors (hundreds) and more than 200 integrated circuits. This includes field programmable gate arrays (FPgas). The inductance beads of the board are distributed in several lines. It drills holes in multiple locations, including around a specific mounted chip. The board was marked with codes such as 94V-0, 6BA01, and PC-40802. GE publication GEH-6421 will provide more information on component and board mounting.
