>>>>>型號:IS215VCMIH2C 控制系統中的VME通信卡 允許輸入/輸出
【功能描述】
IS215VCMIH2C 和 Mark VI 控制系統是什么時候首次發布的？
Mark VI 是 GE 發布的最后一批 Speedtronic 系列之一。從 1960 年代后期（MKI）到 1990 年代（MKVI 和 MKVIe），該系列燃?xì)廨啓C(jī)/蒸汽輪機管理系統經過多次迭代開發，其主要目標是通過可靠的管理、良好的設計和最好的新興技術來提高渦輪機系統的效率。該IS215VCMIH2C由GE能源和GE工業解決方案在Mark VI控制系統的生產過程中發布。
產品描述
該IS215VCMIH2C被設計為GE Mark VI渦輪機控制系統中的VME通信卡，對于整個系統的正確功能至關重要。VCMI VME 通信板允許輸入/輸出 （I/O） 卡與安裝在 VME 背板上的其他 I/O 卡、安裝在擴展機架上的 I/O 卡、I/O 備份保護模塊、三重冗余控制模塊以及主處理器模塊進行通信。
IS215VCMIH2C卡也廣義地稱為VME總線主控制器。該P(yáng)CB連接I/O板和控制器之間的通信。它還充當系統控制網絡（IONet）的通信接口。

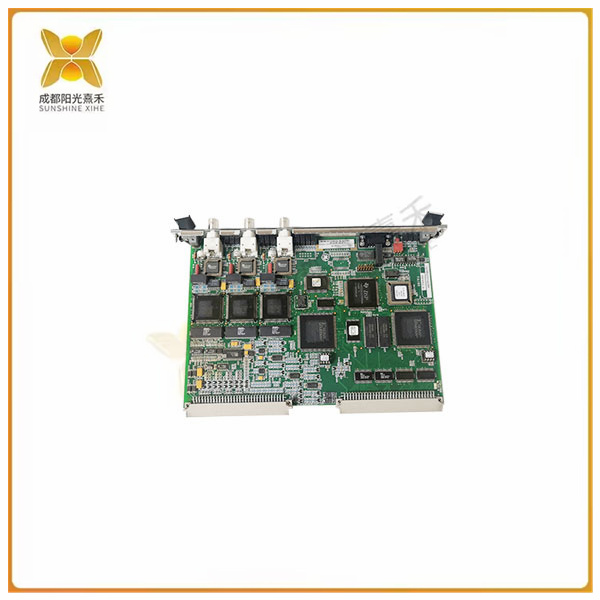

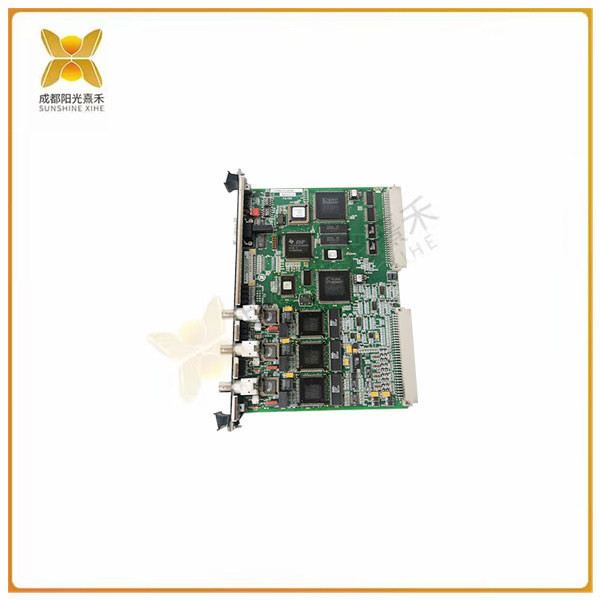

IS215VCMIH2C內置四個端口連接，放置在其前面板上。其中包括一個 RS-232C 串行端口、D 型插頭連接器和三個 IONet 10Base2 以太網端口。每個 IONet 連接器都與三個標記為 TX/RX/CD 的 LED 指示燈相關聯。該板具有標記為狀態、失敗、運行以及 1、2、4 和 8 的附加 LED 指示燈。前者位于復位開關（按鈕）上方，而后者則位于串行端口的正下方。
>>>>>型號:IS215VCMIH2C 控制系統中的VME通信卡 允許輸入/輸出
【英文介紹】
When were the IS215VCMIH2C and Mark VI control systems first released?
The Mark VI was one of the last Speedtronic series to be released by GE. From the late 1960s (MKI) to the 1990s (MKVI and MKVIe), this series of gas turbine/steam turbine management systems was developed in many iterations with the main goal of improving the efficiency of turbine systems through reliable management, good design and the best emerging technologies. The IS215VCMIH2C was released by GE Energy and GE Industrial Solutions during the production of the Mark VI control system.
Product description
The IS215VCMIH2C is designed as a VME communication card in the GE Mark VI turbine control system and is essential for the correct functioning of the entire system. The VCMI VME communication board allows the input/output (I/O) card to communicate with other I/O cards mounted on the VME backplane, expansion rack mounted I/O cards, I/O backup protection module, triple redundancy control module, and main processor module.
The IS215VCMIH2C card is also broadly referred to as the VME bus master controller. The PCB connects the communication between the I/O board and the controller. It also acts as a communication interface for the System Control Network (IONet).
The IS215VCMIH2C has four built-in port connections placed on its front panel. These include an RS-232C serial port, Type D plug connectors, and three IONet 10Base2 Ethernet ports. Each IONet connector is associated with three LED indicators labeled TX/RX/CD. The board has additional LED indicators labeled Status, Failure, Run, and 1, 2, 4, and 8. The former is located above the reset switch (button), while the latter is located directly below the serial port.
