>>>>>型號:IC754VSI12CTD 操作面板 提供了用戶友好的環境

【功能描述】

IC754VSI12CTD是通用電氣（GE）Fanuc Automation制造的操作面板。此操作面板是QuickPanel人機界面（HMI）設備的一部分。該HMI設備預裝了Microsoft Windows Compact Embedded（CE）操作系統，該操作系統提供了任何操作員或用戶都熟悉的配置和維護界面。它不僅提供了用戶友好的環境，還提供標準的Microsoft Windows命令和功能，例如文件傳輸協議、Pocket Internet Explorer、遠程訪問和遠程瀏覽、PDF查看器等命令。

該IC754VSI12CTD允許任何操作員或用戶通過提供的監視器、觸摸輸入接口和通信接口監視或控制連接的機器或過程。為了監控系統，提供的12英寸彩色薄膜晶體管（TFT）顯示屏能夠通過定制設計的模擬提供過程的可視化。此外，彩色顯示屏支持實現彩色編碼動畫和狀態顯示，以提高信息水平?？刂泼钔ㄟ^(guò)觸摸感應屏幕輸入，允許操作員通過觸摸相應的運行時圖標或?qū)ο笾苯虞斎朊?。與控制器的通信是使用單個RS232/RS485組合端口在點對點或多點串行拓?fù)渲型瓿傻?，而?lián)網和多節點通信是通過以太網通信接口完成的，該接口支持10/100 Mbps的傳輸速率。該IC754VSI12CTD由24VDC的外部電壓電源供電，功耗小于48W。

此操作面板支持歷史數據記錄、視圖和Visual Basic（當與Proficy Machine Edition 5.0或更高版本一起使用時）。

通用電氣IC754VSI12CTD終端重量輕，旨在成為現代接口機器QuickPanel組的一部分。IC754VSI12CTD終端使客戶能夠通過RS-232/RS-485通信端口和關聯的HMI-CAB-C110通信鏈路使用Proficy View（機器版）編程軟件與他們的機器進行連接。用戶可以通過觸摸屏輸入數據和信息。

 >>>>>型號:IC754VSI12CTD 操作面板 提供了用戶友好的環境

【英文介紹】

The IC754VSI12CTD is an operating panel manufactured by Fanuc Automation of General Electric (GE). This operation panel is part of the QuickPanel Human Machine Interface (HMI) device. The HMI device comes preloaded with the Microsoft Windows Compact Embedded (CE) operating system, which provides a configuration and maintenance interface familiar to any operator or user. It not only provides a user-friendly environment, but also standard Microsoft Windows commands and features such as File Transfer Protocol, Pocket Internet Explorer, Remote Access and Remote Browsing, PDF viewer and more commands.

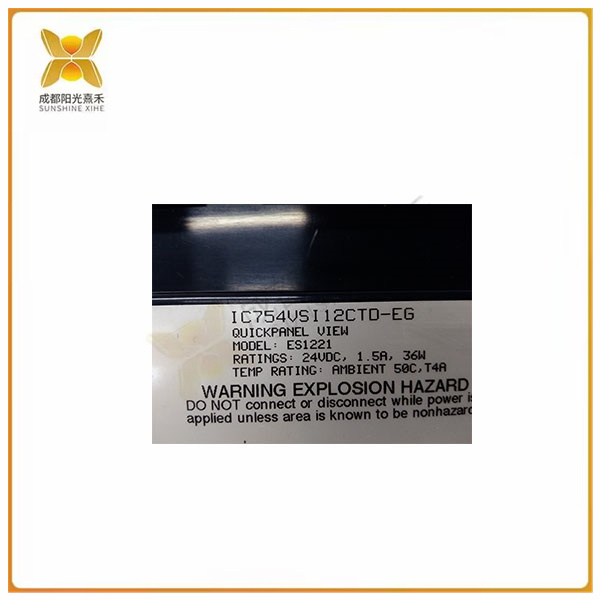

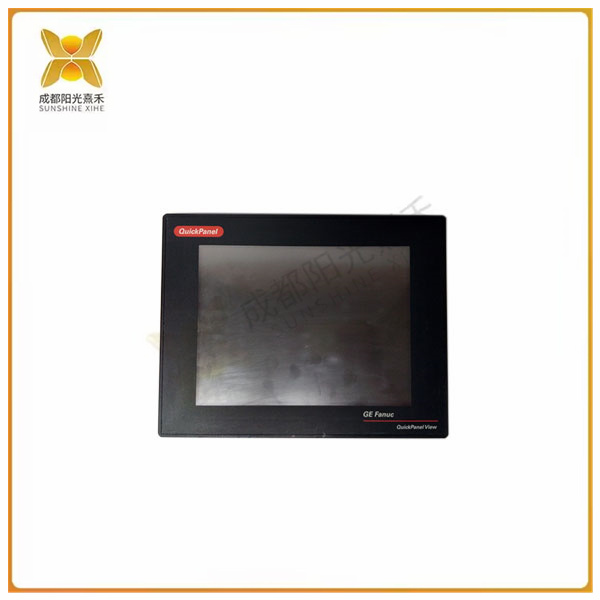

The IC754VSI12CTD allows any operator or user to monitor or control the connected machine or process through the provided monitor, touch input interface and communication interface. To monitor the system, the supplied 12-inch color thin-film transistor (TFT) display provides visualization of the process through custom-designed simulations. In addition, the color display supports color-coded animation and status display to improve the level of information. Control commands are entered via a touch-sensitive screen, allowing the operator to enter commands directly by touching the corresponding runtime icon or object. Communication with the controller is done in a point-to-point or multipoint serial topology using a single RS232/RS485 combination port, while networking and multi-node communication is done via an Ethernet communication interface that supports a transfer rate of 10/100 Mbps. The IC754VSI12CTD is powered by an external voltage supply of 24VDC and consumes less than 48W.

This action panel supports historical data logging, views, and Visual Basic (when used with Proficy Machine Edition 5.0 or later).

The GE IC754VSI12CTD terminal is lightweight and designed to be part of the QuickPanel group of modern interface machines. The IC754VSI12CTD terminal enables customers to connect with their machines using Proficy View (Machine Edition) programming software via the RS-232/RS-485 communication port and the associated HMI-CAB-C110 communication link. Users can enter data and information through the touch screen.
