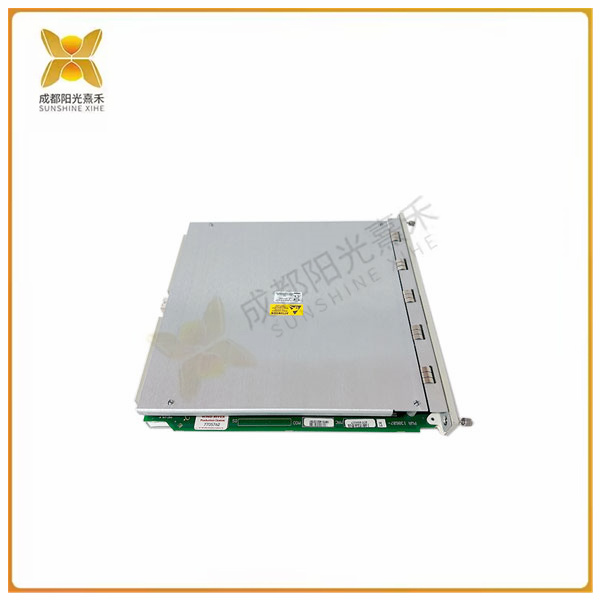

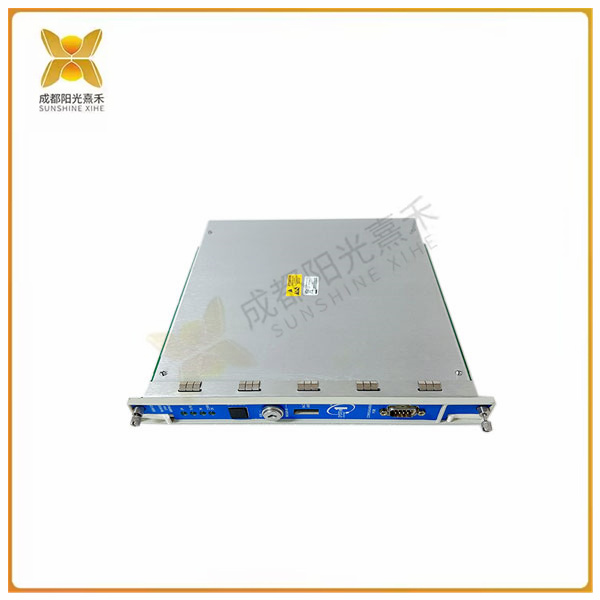

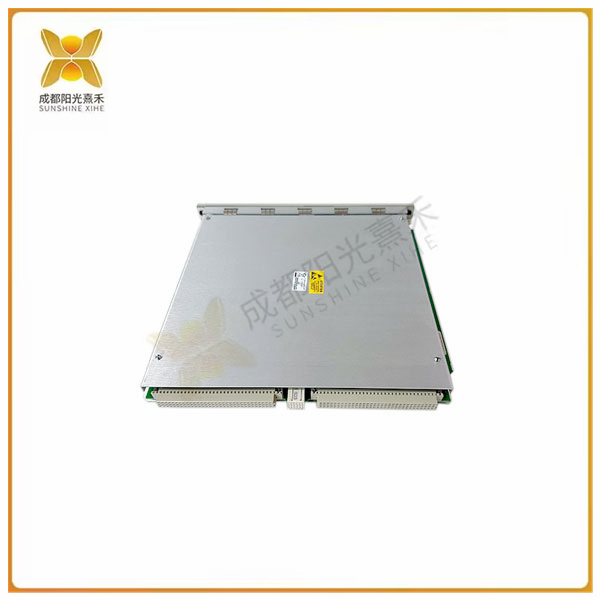

>>>>>型號:138607-01 標準瞬態數據接口模塊 接口監控系統

【功能描述】

3500 TDI(暫態數據接口)是3500之間的接口監控系統和GE的system 1*機械管理軟件。的TDI結合了3,500 /20機架接口模塊(RIM)的能力數據收集能力的通信處理器，如TDXnet。TDI與M系列一起在3500機架的RIM插槽中運行監視器(3500/40M, 3500/42M等)連續采集穩態和暫態波形數據，并將該數據通過以太網鏈路傳遞給主機軟件(請參閱本文檔末尾的兼容性部分。)靜態數據捕獲是TDI的標準配置，但是使用一個可選的通道啟用磁盤將允許TDI捕獲動態或瞬態數據。的與以前的通信相比，TDI在幾個方面進行了改進并將通信處理器功能集成到3500架。

盡管TDI提供了整個機架通用的某些功能，但它并不是部分關鍵監控路徑，對正常、正常無影響整個監控系統的運行。每3500機架需要一個TDI或RIM，它總是占用槽位1(電源旁邊)。對于三模冗余(TMR)應用，3500系統需要一個TMR版本的TDI。除了所有標準TDI功能外，TMR TDI還執行“監視器通道比較”。3500tmr配置使用監控器選項中指定的設置執行監控器投票。使用在這種方法中，TMR TDI不斷地比較三(3)的輸出。多余的監視。如果TDI檢測到來自其中一個的信息監視器不再等同于其他監視器(在配置的百分比內)兩個監視器，它將監視器標記為錯誤，并將事件放置在系統事件列表。如果您使用過 bently nevada vib 系統，該系統可能會顯示來自 bently nevada 系統的間隙電壓。但是你必須知道連接監控系統。很長一段時間我調整了 9 伏直流電。

線性范圍中心的真實陳述，通常為 (-1) 至 (-18) VDC。為簡單起見，間隙振動探頭適用于（-10、-10.5 或-11）VDC。至于推力，假設中心零為 -10 VDC。轉子禁止活動時說 12 密耳，總浮動 24 密耳，將探頭設置為 -12.4 VDC。

12 x .2 = 2.4 VDC，加上中心的 -10 VDC。要求渦輪機工作人員將轉子停止然后啟動 3 次，以驗證讀數和可重復性。

大多數最終用戶都會在位置測量方面遇到麻煩。我可以幫忙。

>>>>>型號:138607-01 標準瞬態數據接口模塊 接口監控系統

【英文介紹】

3500 TDI(Transient Data Interface) is the interface between 3500 monitoring systems and GE's system 1* machine management software. The TDI combines the data collection capabilities of 3500/20 rack interface modules (RIM) with communications processors such as TDXnet. Together with the M Series, the TDI runs monitors (3500/40m, 3500/42m, etc.) in the RIM slot of the 3500 rack to continuously collect steady-state and transient waveform data and pass this data over the Ethernet link to the host software (see the Compatibility section at the end of this document). Static data capture is standard for TDI, but using an optional channel-enabled disk will allow TDI to capture dynamic or transient data. Compared to previous communications, TDI has improved on several aspects and integrated communication processor capabilities into 3,500 units.

Although TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no impact on the normal and normal operation of the entire monitoring system. Every 3500 racks requires a TDI or RIM, which always occupies slot 1(next to the power supply). For three-mode redundancy (TMR) applications, the 3500 system requires a TMR version of TDI. In addition to all standard TDI functions, TMR TDI also performs "monitor channel comparison." The 3500tmr configuration performs monitor voting using the Settings specified in the monitor options. Using this method, TMR TDI constantly compares the outputs of three (3). Extra surveillance. If TDI detects that the information monitor from one of the two monitors is no longer equivalent to the other monitors (within a configured percentage), it marks the monitor as an error and places the event in the system event list. If you have used a bently nevada vib system, the system may display the gap voltage from the bently nevada system. But you must know to connect to the monitoring system. For a long time I adjusted the 9 volts DC.

A true statement of the center of the linear range, usually (-1) to (-18) VDC. For simplicity, the gap vibration probe is suitable for (-10, -10.5 or -11) VDC. As for thrust, let's say center zero is -10 VDC. Rotor inactive say 12 mil, total float 24 mil, set probe to -12.4 VDC.

12 x.2 = 2.4 VDC, plus -10 VDC in the center. Turbine crews are asked to stop and then start the rotor 3 times to verify readings and repeatability.

Most end users will have trouble with location measurement. I can help.
