5SHY3545L0020 3BHE014105R0001  |T8110B型|信號轉換器|

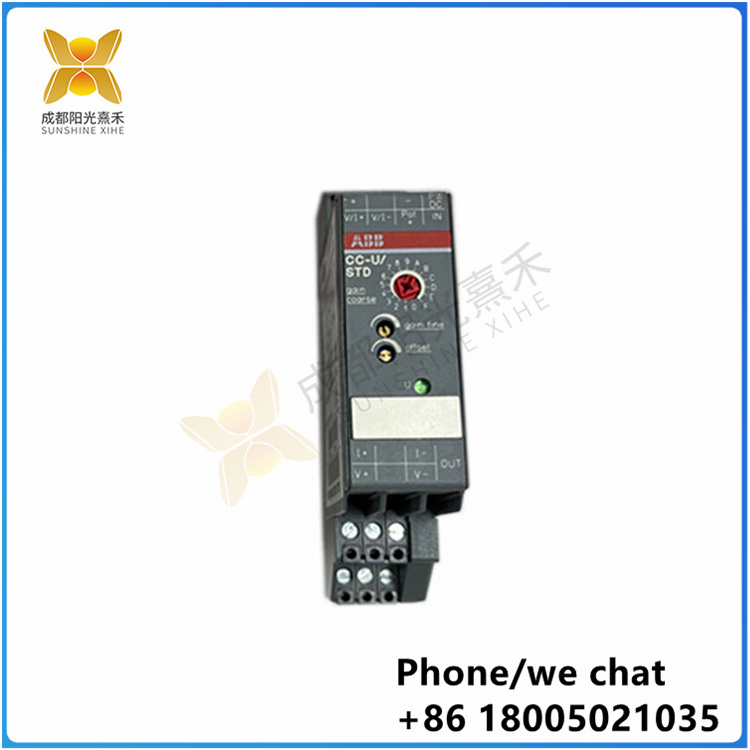

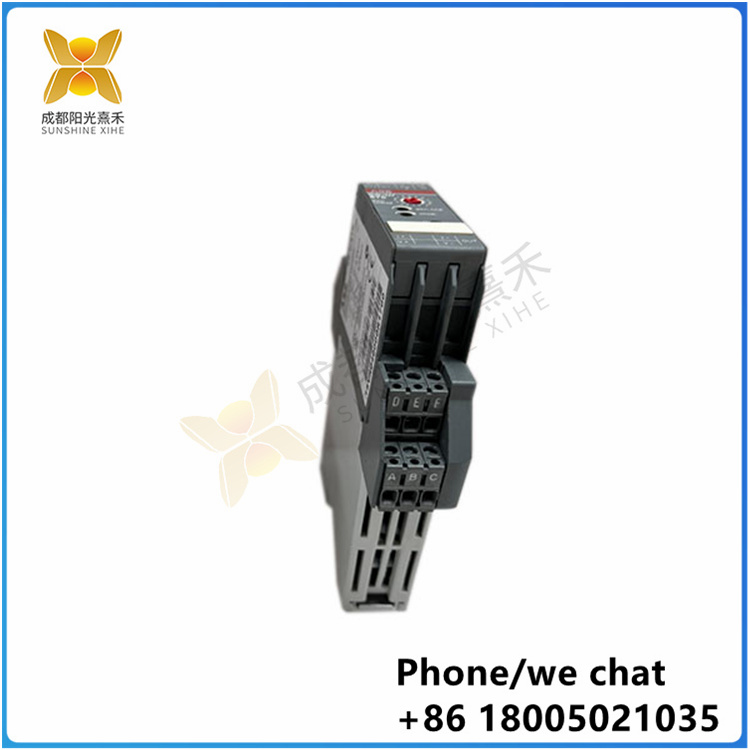

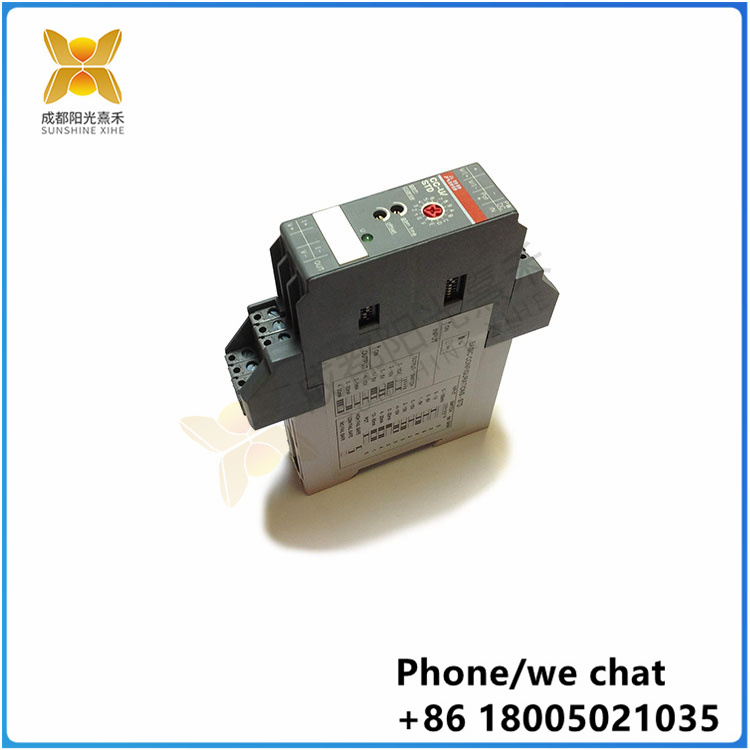

ABB 1SVR040006R0100 是一款通用信號轉換器，屬于 CC-U/I 系列，主要用于測量和轉換電流 RMS 值。以下是該產品的一些關鍵特點和應用：

功能：1SVR040006R0100 是一種測量轉換器，能夠測量任何波形的電流 RMS 值。它具有三重電氣隔離功能，適用于需要高精度電流測量的應用 。

輸入信號：該轉換器支持兩種輸入電流信號范圍，分別為 0-1 A 和 0-5 A，通過相應的端子連接進行選擇 。

輸出信號：提供 41 種輸出信號范圍（8 種標準和 33 種非標準），可以通過直接可訪問的側邊 DIP 開關進行配置。輸出信號包括 0 至 ±55 mA 或 0 至 ±11V 。

供電電壓：額定控制供電電壓為 24-48 V DC，也可以在 24 V AC 下工作 。

電氣隔離：具有三重電氣隔離，確保信號在傳輸過程中的安全性和可靠性

The ABB 1SVR040006R0100 is a universal signal converter belonging to the CC-U/I series, which is mainly used to measure and convert current RMS values. Here are some of the key features and applications of the product:

Function: The 1SVR040006R0100 is a measuring converter capable of measuring current RMS values in any waveform. It has triple electrical isolation and is suitable for applications requiring high precision current measurement.

Input signals: The converter supports two input current signal ranges, 0-1 A and 0-5 A, selected through the corresponding terminal connection.

Output signals: 41 output signal ranges (8 standard and 33 non-standard) are available and can be configured with a directly accessible side DIP switch. Output signals include 0 to ±55 mA or 0 to ±11V.

Power supply voltage: The rated control power supply voltage is 24-48 V DC, and can also work under 24 V AC.

Electrical isolation: Triple electrical isolation ensures the safety and reliability of the signal during transmission
